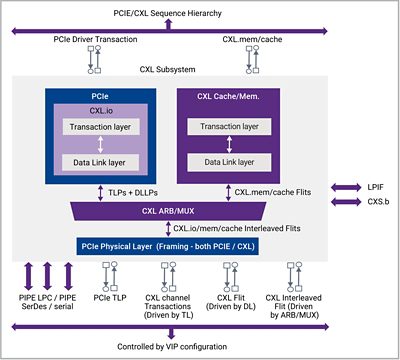

Synopsys Verification IP (VIP) for CXL provides verification of design implementations based on CXL specifications which can be used in SoCs and system level designs to accelerate verification closure. Synopsys VIP provides support for various CXL protocol including CXL.io, CXL.cache, CXL.mem, enabling verification for all device types.
Category
Feature
Specification Version
CXL 1.1, CXL 2.0, CXL 3.0, CXL IDE, CXL CXS.b, CXL LPIF 1.0, PCIe Base- 5.0/6.0, PIPE- 5.2/6.1
DUT Configuration
HOST, Device
Protocol Support
CXL.io, CXL.cache, CXL.mem, PCIe Only
Interface
Serial PIPE, SERDES, CXL over CXS ULL, CXL Over CXS LLL
Device Type
Type 1 – CXL.io + CXL.cache
Type 2 – CXL.io + CXL.mem + CXL.cache
Type 3 – CXL.io + CXL.mem
Topology
PCIe TLMs at TL/DL, CXL.io/mem/cache TLM, CXL Flit TLM - CXL Req/ Data/Resp TLM, Logical PHY Interface (LPIF) v 1.1, PCIe LPC, PIPE SerDes Architecture, Serial
Link Speeds
64 GT/s, 32 GT/s and degraded mode of 16 GT/s and 8 GT/s
Link Width
Native Width (x16, x8, and x4) and degraded width (x2, x1)
Security
IDE, DOE
Flit Support
256B standard, 256B Lopt, 68B, and all other flit types supported for each layer
IO/Cache/Mem
All types of IO, Cache and Mem Flows, Back-Invalidation Host, Device Bias mode, Retry flow, Viral and Poison, QoS telemetry
ARB/MUX
All Power Saving states, Weighted Round Robin, Arbitration Bypass mode
Registers
Configuration Space Registers, Memory Mapped Registers
Flex Bus
Alternate Protocol Negotiation, Framing Error Handling, Synch Header Bypass
Initialization and Enumeration
CXL 1.1, 2.0 and 3.0 enumeration, Link Layer Initialization, Bypass Enumeration
Analysis
Protocol Analyzer, Scoreboard, Protocol Checks at each level, Functional Coverage
Simulator
Support all Major Simulators
Methodology
Native SystemVerilog/UVM
