Specifications: UAL_200 1.0
Interfaces: 802.3 dj compliant, UPLI

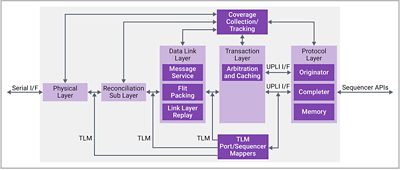

DUT Types/Topology:
- Protocol
- TL
- Phy
- DL
- Reconciliation Sub Layer
- Full Stack
Key VIP Features:
- API based transaction flow for ease of use
- Specification linked Protocol checks and functional coverage
- Exceptions, callback, error injection and analysis ports for Scoreboard
- TLM ports at each layer for traffic tracing
- Configurable timers for threshold testing
- Reference example illustrating sanity usage and representative protocol scenarios
- Can be used in Active as well as in Passive mode
Debug and Analysis:
- Verdi based protocol and performance analysis
- Protocol checks at each layer
- Debug Ports
- Multiple log options
