What Is Local Layout Effect (LLE) and How Does It Impact Chip Design?

• Traditional LLE mitigation strategies
• LLE awareness at every stage of the design process
• Real world results: Samsung improves PPA with LLE flows
• LLE-aware design: essential for SoC success

Local layout effect (LLE) is a critical consideration in modern system-on-chip (SoC) design. As SoCs become more complex and component densities increase — especially at advanced process nodes of 3 nm and below — LLE can significantly affect both performance and power consumption.

Also known as layout-dependent effect (LDE), LLE describes how a cell’s electrical behavior — specifically its threshold voltage and bulk mobility — is influenced by its immediate physical surroundings. Variations in neighboring cells or increased density of nearby features can alter these parameters, potentially leading to timing violations or excess leakage.

Because the consequences of LLE can be unpredictable, LLE presents significant obstacles during signoff — a rigorous, high-stakes process that verifies design rules, testability, timing, and power. That’s why it’s essential to identify and address LLE-related issues as early as possible.

Unfortunately, late-stage issues related to LLE are common. Discovering an LLE-induced error late in the chip design process can result in costly engineering change orders (ECOs) or even require a chip respin — outcomes that can cost millions and, worse yet, significantly delay product launch.

To mitigate these risks, teams have either relied on traditional, conservative methods or adopted proactive, LLE-aware methodologies. This choice impacts SoC performance, efficiency, and the ability to meet tight schedules.

Historically, in the absence of precise modeling and analysis tools, many engineering teams adopted a cautious — or "pessimistic" — approach to chip design. To guard against worst-case timing and power scenarios, they inserted extra filler cells to minimize electrical interference.

For many chip designers, this methodology is still the default because it’s familiar, aligns with established signoff and verification procedures, and feels less risky — especially in organizations with ingrained workflows or limited access to advanced electronic design automation (EDA) tools.

However, without continuous, real-time data during the design process, engineers must wait until all filler cells are placed before they can thoroughly analyze LLE effects. This lack of early and accurate insight often leads to overuse of filler cells, wasting valuable chip space and increasing energy consumption — diminishing the SoC’s power, performance, and area (PPA).

To optimize PPA and avoid costly surprises at signoff, it’s essential to make the entire design flow LLE-aware from the outset. With an integrated, data-driven approach, teams can proactively identify and resolve issues, resulting in more efficient and higher-performing chips.

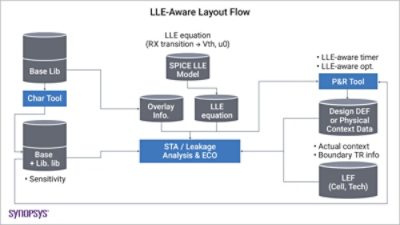

Recognizing the shortcomings of traditional, overly conservative strategies, many teams are now adopting end-to-end, LLE-aware methodologies.Leveraging advanced tools and real-time data, these methodologies enable teams to identify and address issues early — instead of reacting to problems later in the process. And they provide critical insights at each stage of the design cycle.

• Early design — Identify variability and reliability risks using standard cell libraries and PrimeShield.

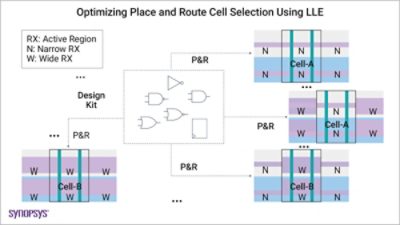

• Physical design — Optimize placement and sizing for PPA using Fusion Compiler, which analyzes cell surroundings.
• Signoff — Confirm the design meets performance and reliability targets using PrimeTime for timing analysis and PrimePower for power analysis.

Beyond enabling early issue detection, LLE-aware methodologies can deliver significant improvements in chip performance, efficiency, and manufacturability.

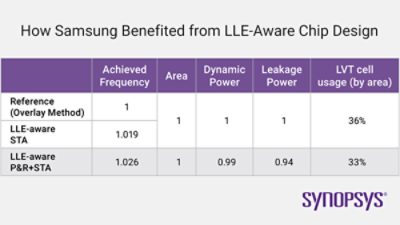

Samsung, for example, recently leveraged the approach to enhance one of its 3 nm mobile chips. Using Synopsys tools with LLE layout and optimization flows, the company:

• Increased the operating frequency of the chip by 2.6%.
• Improved energy efficiency — reducing both dynamic and leakage power — by using fewer low-threshold voltage (LVT) cells.
• Reduced area by swapping same-size cells and using horizontal layouts.

The benefits seen by Samsung reflect a broader industry shift: LLE-aware design is rapidly becoming essential for SoC success. As process nodes continue to shrink and SoC architectures grow more complex, LLE has moved from a secondary concern to a dominant factor in design strategy.

Proactive, LLE-aware methodologies now enable engineering teams to move beyond overly conservative designs and reactive fixes, unlocking new levels of power efficiency, performance, and area optimization.

Integrating LLE analysis throughout the design and verification flow helps organizations minimize the risk of late-stage ECOs, costly respins, and missed market opportunities. As the industry advances toward 3DICs and sub-2 nm nodes, the adoption of LLE-aware design practices will only become more critical.
