ISO 54 Gear Designer

Live Demo MakerWorld YouTube Demo License

A free browser-based gear designer that generates 3D-printable gears to ISO 54 standards. No install required — runs in any browser on desktop, mobile (Android & iOS), and Windows.

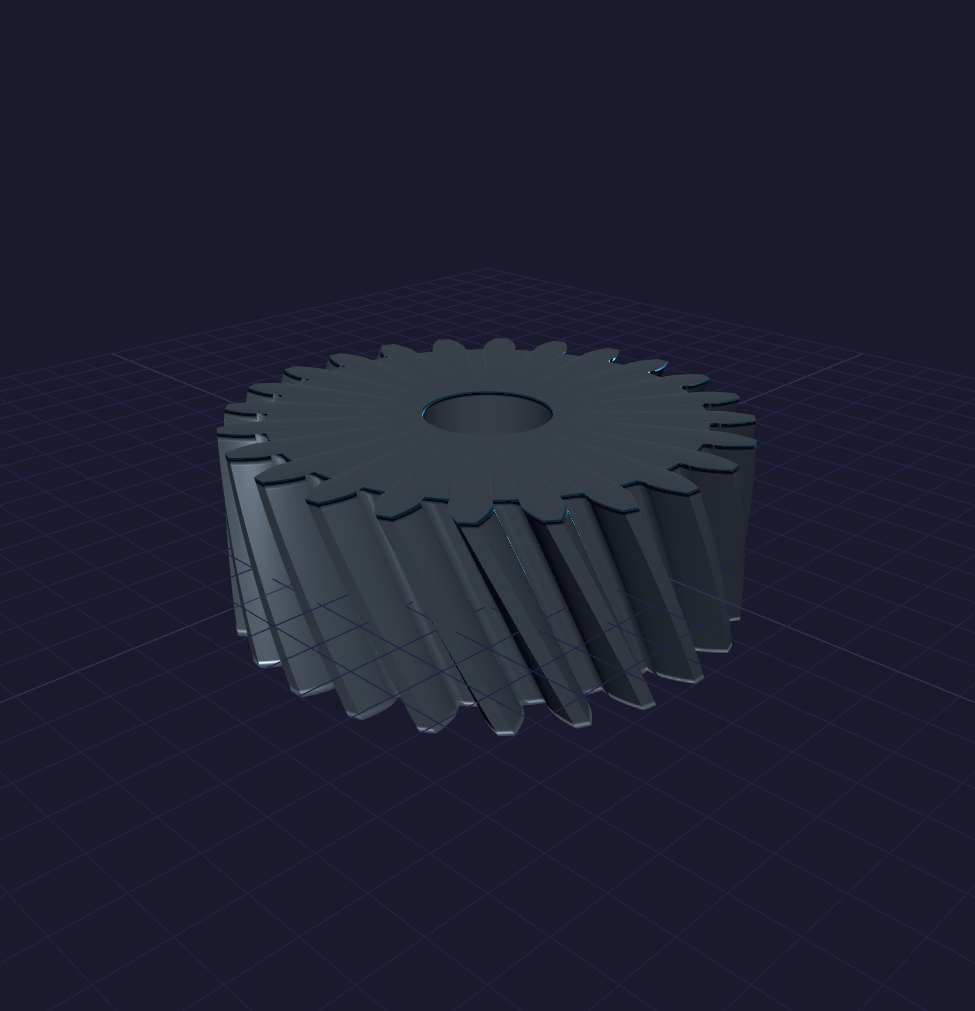

Helical Gear Preview

Watch the Demo

Click the image above to watch the full demo on YouTube

• Spur Gear — Straight-cut teeth for simple power transmission
• Helical Gear — Angled teeth for smoother, quieter operation
• Herringbone Gear — Double helical for zero axial thrust
• Bevel Gear — Conical gears for perpendicular shaft connections
• Worm Gear — High reduction ratio worm and wheel pairs

• 13 standard module sizes: 0.5, 0.8, 1.0, 1.25, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0 mm
• 3 standard pressure angles: 14.5, 20, 25 degrees
• Customizable tooth count, face width, and helix angle

• Export watertight manifold STL files — no repair needed
• Tested and verified on Bambu Lab printers
• Proper bore holes for shaft mounting

• Real-time 3D visualization powered by Three.js
• Orbit, zoom, and pan controls
• Meshing gear pair animation
• Dimension readout panel with all gear specifications

• Works on Windows, macOS, and Linux
• Fully responsive on Android and iOS devices
• No install, no signup — just open and design

1. Open the app — rayboorsma1960.github.io/gear-designer
2. Select a gear type from the dropdown
3. Choose your module size (ISO 54 standard)
4. Adjust parameters — tooth count, face width, pressure angle, helix angle
5. Preview in 3D — rotate and inspect your gear
6. Export STL — click the export button and print!

• Single HTML file — no dependencies, no build step, no server required
• Three.js for 3D rendering
• Involute tooth profile mathematics
• Watertight manifold geometry for reliable 3D printing
• ASCII STL export

• Live App: rayboorsma1960.github.io/gear-designer
• YouTube Demo: Watch on YouTube
• MakerWorld: ISO 54 Gear Designer on MakerWorld
