English | Chinese
A tensorflow implementation of YOLOv4 inspired by https://github.com/AlexeyAB/darknet.
Frame code from https://github.com/YunYang1994/tensorflow-yolov3.
Backbone: CSPDarknet53[1], Mish[2];
Head: YOLOv3(Leaky_ReLU)[10];
Loss: DIOU CIOU[5], Focal_Loss[6]; Other: Label_Smoothing[7];
GeForce GTX 1080 Ti:
Train and Val sets: VOCtrainval_11-May-2012; Test set: VOCtest_06-Nov-2007;
| Network | Size | FPS(avg) | mAP | weights |
|---|---|---|---|---|
| Darknet53_spp_pan_ciou | 608x608 | 23 | 62.52% | yolov4.pb kvn3 |
| Darknet53_spp_pan_ciou | 512x512 | 29 | 59.77% | yolov4.pb fwkc |

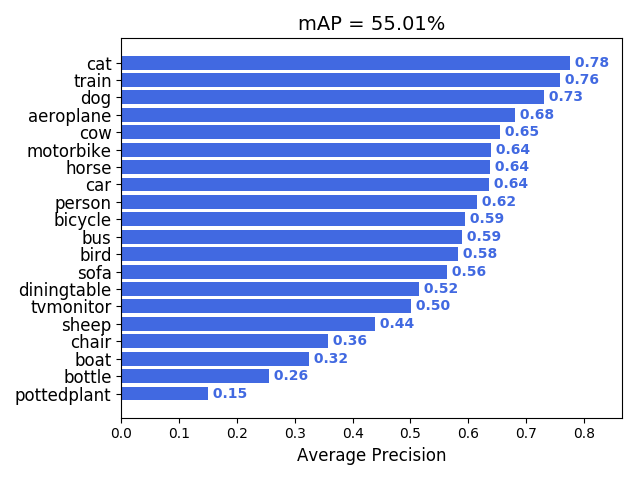

| Darknet53_spp_pan_ciou | 416x416 | 36 | 55.01% | yolov4.pb li3p |
Python 3.6.8
Tensorflow 1.13.1
- Download YOLOv4 weights from yolov4.weights.
- Convert the Darknet YOLOv4 model to a tf model.
- Run YOLOv4 detection.
Running from_darknet_weights_to_ckpt.py will get tf yolov4 weight file yolov4_coco.ckpt.
python from_darknet_weights_to_ckpt.py
Running ckpt2pb.py will get tf yolov4 weight file yolov4.pb.
python ckpt2pb.py
Or running from_darknet_weights_to_pb.py directly.
python from_darknet_weights_to_pb.py
Inference
python image_demo.py
to yolov4/config.py add your own path.
python train.py
[1] Cross Stage Partial Network (CSPNet)
[2] A Self Regularized Non-Monotonic Neural Activation Function
[3] Spatial Pyramid Pooling in Deep Convolutional Networks for Visual Recognition
[4] Path Aggregation Network for Instance Segmentation
[5] Distance-IoU Loss: Faster and Better Learning for Bounding Box Regression
[6] Focal Loss for Dense Object Detection
[7] When Does Label Smoothing Help?
[8] Convolutional Block Attention Module
[9] YOLOv4: Optimal Speed and Accuracy of Object Detection
[10] YOLOv3: An Incremental Improvement
[11] Aggregated Residual Transformations for Deep Neural Networks
keras_yolov3 https://github.com/qqwweee/keras-yolo3.
