STEP1 Add it in your root build.gradle at the end of repositories:
allprojects {
repositories {
...
maven { url 'https://jitpack.io' }
}
}
STEP2 Add the dependency
dependencies {
compile 'com.github.chencanlin:StepView:1.1.0'
}

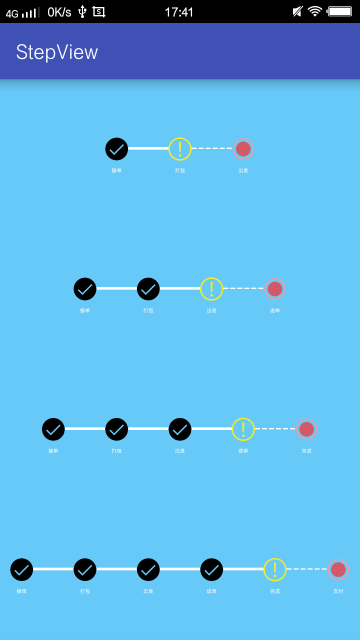

效果预览
使用
<com.org.ccl.stepview.view.StepView
android:id="@+id/sv_four"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="#66C9F7"
app:orientation="horizontal"
app:icon_completed="@drawable/icon_check"
app:icon_uncompleted="@drawable/icon_circle"
app:icon_completing="@drawable/icon_exclamation_mark"
/>
fourData.add(new MyStepInfoBean("接单",MyStepInfoBean.StepStatus.COMPLETED));
fourData.add(new MyStepInfoBean("打包",MyStepInfoBean.StepStatus.COMPLETED));
fourData.add(new MyStepInfoBean("出发",MyStepInfoBean.StepStatus.COMPLETED));
fourData.add(new MyStepInfoBean("送单",MyStepInfoBean.StepStatus.COMPLETED));
fourData.add(new MyStepInfoBean("完成",MyStepInfoBean.StepStatus.COMPLETING));
fourData.add(new MyStepInfoBean("支付",MyStepInfoBean.StepStatus.UNCOMPLETED));
mOne.setData(oneData);
mTwo.setData(twoData);
mThree.setData(threeData);
mFour.setData(fourData);

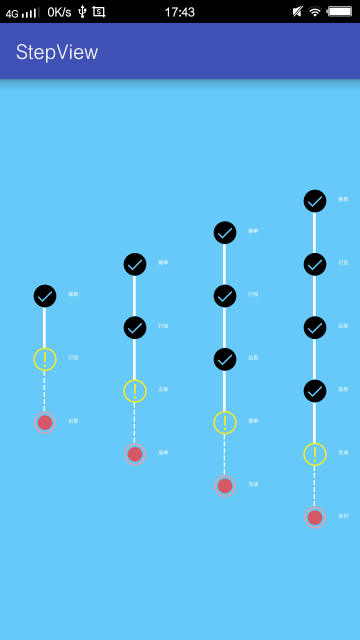

效果预览
使用
<com.org.ccl.stepview.view.StepView
android:id="@+id/sv_four"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="#66C9F7"
app:orientation="vertical"
app:icon_completed="@drawable/icon_check"
app:icon_uncompleted="@drawable/icon_circle"
app:icon_completing="@drawable/icon_exclamation_mark"
/>
fourData.add(new MyStepInfoBean("接单",MyStepInfoBean.StepStatus.COMPLETED));
fourData.add(new MyStepInfoBean("打包",MyStepInfoBean.StepStatus.COMPLETED));
fourData.add(new MyStepInfoBean("出发",MyStepInfoBean.StepStatus.COMPLETED));
fourData.add(new MyStepInfoBean("送单",MyStepInfoBean.StepStatus.COMPLETED));
fourData.add(new MyStepInfoBean("完成",MyStepInfoBean.StepStatus.COMPLETING));
fourData.add(new MyStepInfoBean("支付",MyStepInfoBean.StepStatus.UNCOMPLETED));
mOne.setData(oneData);
mTwo.setData(twoData);
mThree.setData(threeData);
mFour.setData(fourData);
