NestedScrolling简单实现
Android在发布 5.0(Lollipop)版本之后,Google为我们提供了嵌套滑动,。Lollipop及以上版本的所有View都已经支持了这套机制,Lollipop之前版本可以通过Support包进行向前兼容。
主要的4个类:
NestedScrollingChild (interface)
NestedScrollingChildHelper (class)
NestedScrollingParent (interface)
NestedScrollingParentHelper (class)
NestedScrolling是一套父view与子View之间的滑动交互机制
此demo是对于NestedScrollingParent的实现。 内部嵌套RecyclerView,由于RecyclerView实现了NestedScrollingChild接口所以只需要让parent实现NestedScrollingParent接口就能处理滑动的传递与消耗。
NestedScrollingParent接口如下:
package android.support.v4.view;
import android.view.View;
public interface NestedScrollingParent {
// 当子view想要滑动的时候会回调此方法,返回值决定是否允许子vew滑动
boolean onStartNestedScroll(View var1, View var2, int var3);
// 如果parent允许子view滑动,此方法会被调用
void onNestedScrollAccepted(View var1, View var2, int var3);
// 当一次完整的滑动全部完成后会调用此方法
void onStopNestedScroll(View var1);
// 当child处理完滑动过后会回调此方法,告诉parent自己消耗了多少滑动,没有消耗完的parent可以自行处理
void onNestedScroll(View var1, int var2, int var3, int var4, int var5);
// 在child想要滑动之前会被调用,parent如果完全消耗,child是接收不到滑动事件的,
void onNestedPreScroll(View var1, int var2, int var3, int[] var4);
// 此方法是child处理完fling事件后被调用,参数可以知道child是否消耗调fling事件,如果没有,自己还是可以消耗,也可以不消耗,返回值决定是否消耗
boolean onNestedFling(View var1, float var2, float var3, boolean var4);
// 此方法是在抬手之后被调用的,parent可以自行处理,但此事件一旦处理,就是消耗掉所有滑动,child就接收不到fling事件,返回值确定是否需要消耗fling事件
boolean onNestedPreFling(View var1, float var2, float var3);
int getNestedScrollAxes();
}

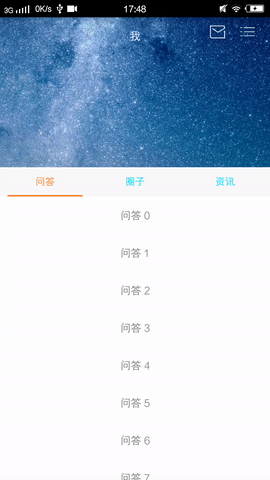

Demo 展示 :
